run_environment Namespace Reference

Constants and enums related to run environment and settings for run. More...

Classes
struct	RunImpSettings
	Structure that stores settings for current implementation run. More...

Enumerations
enum class	AccSetting {   kAVX512_F16 , kAVX512 , kAVX256_F16 , kAVX256 ,   kNEON , kCUDA , kNone }
	Enum for acceleration setting. More...
enum class	TemplatedItersSetting { kRunOnlyTempated , kRunOnlyNonTemplated , kRunTemplatedAndNotTemplated }
	Enum that specifies whether or not to use templated counts for the number of iterations in processing loops or to run implementation with and without templated iteration counts Templated counts for number of loop iterations can help with optimization but requires that the number of iterations be known at compile time. More...
enum class	ParallelParamsSetting { kDefault , kOptimized }
	Enum for parallel parameters settings in run. More...
enum class	OptParallelParamsSetting { kSameParallelParamsAllKernels , kAllowDiffKernelParallelParamsInRun }
	Enum to specify if optimizing parallel parameters per kernel or using same parallel parameters across all kernels in run In initial testing optimizing per kernel is faster on GPU and using same parallel parameters across all kernels is faster on CPU. More...

Functions
unsigned int	GetBytesAlignMemory (AccSetting accel_setting)
template<AccSetting ACCELERATION_SETTING>
RunData	RunSettings ()
	Generate RunData object that contains description header with corresponding value for each run setting. More...
template<AccSetting ACCELERATION_SETTING>
constexpr std::string_view	AccelerationString ()
	Get string corresponding to acceleration method at compile time. More...
std::string_view	AccelerationString (AccSetting acceleration_setting)
	Get string corresponding to acceleration method at run time. More...

Variables
constexpr std::string_view	kAccelerationDescHeader {"Acceleration"}
	Constant string for acceleration. More...
const std::map< std::size_t, std::string_view >	kDataSizeToNameMap
	Mapping from data size to data type string. More...
constexpr std::string_view	kPParamsPerKernelSettingHeader {"Parallel Params Per Kernel Setting"}
constexpr std::string_view	kPParamsSameEveryKernelDesc {"Same Across Kernels"}
constexpr std::string_view	kPParamsSetEachKernelDesc {"Set Per Kernel"}
const std::map< OptParallelParamsSetting, std::string_view >	kOptPParmsSettingToDesc
constexpr std::string_view	kCPUThreadsPinnedHeader {"CPU Threads Pinned To Socket"}
constexpr std::string_view	kOmpPlacesHeader {"OMP_PLACES"}
constexpr std::string_view	kOmpProcBindHeader {"OMP_PROC_BIND"}
constexpr std::string_view	kNumCPUThreadsHeader {"Total number of CPU threads"}
constexpr std::string_view	kBytesAlignMemHeader {"BYTES_ALIGN_MEMORY"}

Detailed Description

Constants and enums related to run environment and settings for run.

Enumeration Type Documentation

AccSetting

enum run_environment::AccSetting

strong

Enum for acceleration setting.

Enumerator
kAVX512_F16
kAVX512
kAVX256_F16
kAVX256
kNEON
kCUDA
kNone

Definition at line 59 of file RunSettingsConstsEnums.h.

OptParallelParamsSetting

enum run_environment::OptParallelParamsSetting

strong

Enum to specify if optimizing parallel parameters per kernel or using same parallel parameters across all kernels in run In initial testing optimizing per kernel is faster on GPU and using same parallel parameters across all kernels is faster on CPU.

Enumerator
kSameParallelParamsAllKernels
kAllowDiffKernelParallelParamsInRun

Definition at line 121 of file RunSettingsConstsEnums.h.

ParallelParamsSetting

enum run_environment::ParallelParamsSetting

strong

Enum for parallel parameters settings in run.

Enumerator
kDefault
kOptimized

Definition at line 115 of file RunSettingsConstsEnums.h.

TemplatedItersSetting

enum run_environment::TemplatedItersSetting

strong

Enum that specifies whether or not to use templated counts for the number of iterations in processing loops or to run implementation with and without templated iteration counts Templated counts for number of loop iterations can help with optimization but requires that the number of iterations be known at compile time.

Enumerator
kRunOnlyTempated
kRunOnlyNonTemplated
kRunTemplatedAndNotTemplated

Definition at line 108 of file RunSettingsConstsEnums.h.

Function Documentation

AccelerationString() [1/2]

template<AccSetting ACCELERATION_SETTING>

constexpr std::string_view run_environment::AccelerationString ( )

constexpr

Get string corresponding to acceleration method at compile time.

Template Parameters

ACCELERATION_SETTING

Returns

String view corresponding to acceleration method

Definition at line 70 of file RunSettingsConstsEnums.h.

Here is the caller graph for this function:

AccelerationString() [2/2]

std::string_view run_environment::AccelerationString ( AccSetting  acceleration_setting )

inline

Get string corresponding to acceleration method at run time.

Parameters

acceleration_setting

Returns

String view corresponding to acceleration method

Definition at line 86 of file RunSettingsConstsEnums.h.

GetBytesAlignMemory()

unsigned int run_environment::GetBytesAlignMemory ( AccSetting  accel_setting )

inline

Definition at line 43 of file RunSettings.h.

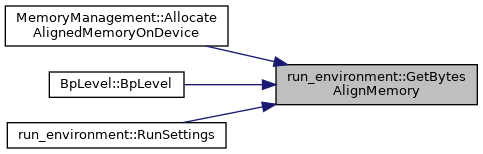

Here is the caller graph for this function:

RunSettings()

template<AccSetting ACCELERATION_SETTING>

RunData run_environment::RunSettings ( )

inline

Generate RunData object that contains description header with corresponding value for each run setting.

Template Parameters

ACCELERATION_SETTING

Returns

RunData object with run settings

Definition at line 59 of file RunSettings.h.

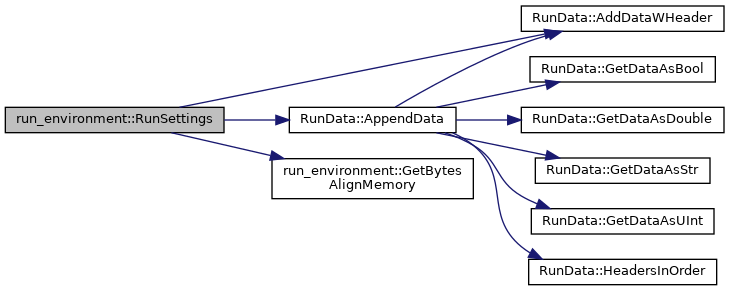

Here is the call graph for this function:

Variable Documentation

kAccelerationDescHeader

constexpr std::string_view run_environment::kAccelerationDescHeader {"Acceleration"}

constexpr

Constant string for acceleration.

Definition at line 56 of file RunSettingsConstsEnums.h.

kBytesAlignMemHeader

constexpr std::string_view run_environment::kBytesAlignMemHeader {"BYTES_ALIGN_MEMORY"}

constexpr

Definition at line 141 of file RunSettingsConstsEnums.h.

kCPUThreadsPinnedHeader

constexpr std::string_view run_environment::kCPUThreadsPinnedHeader {"CPU Threads Pinned To Socket"}

constexpr

Definition at line 137 of file RunSettingsConstsEnums.h.

kDataSizeToNameMap

const std::map<std::size_t, std::string_view> run_environment::kDataSizeToNameMap

Initial value:

{
  {sizeof(float), "FLOAT"},
  {sizeof(double), "DOUBLE"},
  {sizeof(short), "HALF"}
}

Mapping from data size to data type string.

Definition at line 97 of file RunSettingsConstsEnums.h.

kNumCPUThreadsHeader

constexpr std::string_view run_environment::kNumCPUThreadsHeader {"Total number of CPU threads"}

constexpr

Definition at line 140 of file RunSettingsConstsEnums.h.

kOmpPlacesHeader

constexpr std::string_view run_environment::kOmpPlacesHeader {"OMP_PLACES"}

constexpr

Definition at line 138 of file RunSettingsConstsEnums.h.

kOmpProcBindHeader

constexpr std::string_view run_environment::kOmpProcBindHeader {"OMP_PROC_BIND"}

constexpr

Definition at line 139 of file RunSettingsConstsEnums.h.

kOptPParmsSettingToDesc

const std::map<OptParallelParamsSetting, std::string_view> run_environment::kOptPParmsSettingToDesc

Initial value:

{
  {OptParallelParamsSetting::kSameParallelParamsAllKernels, kPParamsSameEveryKernelDesc},
  {OptParallelParamsSetting::kAllowDiffKernelParallelParamsInRun, kPParamsSetEachKernelDesc}
}

Definition at line 131 of file RunSettingsConstsEnums.h.

kPParamsPerKernelSettingHeader

constexpr std::string_view run_environment::kPParamsPerKernelSettingHeader {"Parallel Params Per Kernel Setting"}

constexpr

Definition at line 128 of file RunSettingsConstsEnums.h.

kPParamsSameEveryKernelDesc

constexpr std::string_view run_environment::kPParamsSameEveryKernelDesc {"Same Across Kernels"}

constexpr

Definition at line 129 of file RunSettingsConstsEnums.h.

kPParamsSetEachKernelDesc

constexpr std::string_view run_environment::kPParamsSetEachKernelDesc {"Set Per Kernel"}

constexpr

Definition at line 130 of file RunSettingsConstsEnums.h.
