RunBpOnStereoSetOptimizedCPU< T, DISP_VALS, ACCELERATION > Class Template Reference

Child class of RunBpOnStereoSet to run optimized CPU implementation of belief propagation on a given stereo set as defined by reference and test image file paths. More...

#include <RunBpOnStereoSetOptimizedCPU.h>

Inheritance diagram for RunBpOnStereoSetOptimizedCPU< T, DISP_VALS, ACCELERATION >:

Collaboration diagram for RunBpOnStereoSetOptimizedCPU< T, DISP_VALS, ACCELERATION >:

Public Member Functions
std::string	BpRunDescription () const override
	Pure virtual function to return run description corresponding to target acceleration. More...
std::optional< beliefprop::BpRunOutput >	operator() (const std::array< std::string, 2 > &ref_test_image_path, const beliefprop::BpSettings &alg_settings, const ParallelParams &parallel_params) const override
	Pure virtual operator() overload that must be defined in child class. More...

Additional Inherited Members
Protected Member Functions inherited from RunBpOnStereoSet< T, DISP_VALS, ACCELERATION >
std::optional< beliefprop::BpRunOutput >	ProcessStereoSet (const std::array< std::string, 2 > &ref_test_image_path, const beliefprop::BpSettings &alg_settings, const beliefprop::BpOnDevice< T, DISP_VALS, ACCELERATION > &run_bp_on_device) const
	Protected function to set up, run, and evaluate bp processing on target device using pointers to acceleration-specific smooth image, process BP, and memory management child class objects. More...

Detailed Description

template<RunData_t T, unsigned int DISP_VALS, run_environment::AccSetting ACCELERATION>
class RunBpOnStereoSetOptimizedCPU< T, DISP_VALS, ACCELERATION >

Child class of RunBpOnStereoSet to run optimized CPU implementation of belief propagation on a given stereo set as defined by reference and test image file paths.

Template Parameters

T
DISP_VALS
ACCELERATION

Definition at line 57 of file RunBpOnStereoSetOptimizedCPU.h.

Member Function Documentation

BpRunDescription()

template<RunData_t T, unsigned int DISP_VALS, run_environment::AccSetting ACCELERATION>

std::string RunBpOnStereoSetOptimizedCPU< T, DISP_VALS, ACCELERATION >::BpRunDescription ( ) const

inlineoverridevirtual

Pure virtual function to return run description corresponding to target acceleration.

Returns

Description of run using specified acceleration

Implements RunBpOnStereoSet< T, DISP_VALS, ACCELERATION >.

Definition at line 59 of file RunBpOnStereoSetOptimizedCPU.h.

operator()()

template<RunData_t T, unsigned int DISP_VALS, run_environment::AccSetting ACCELERATION>

std::optional< beliefprop::BpRunOutput > RunBpOnStereoSetOptimizedCPU< T, DISP_VALS, ACCELERATION >::operator() ( const std::array< std::string, 2 > &  ref_test_image_path, const beliefprop::BpSettings &  alg_settings, const ParallelParams &  parallel_params  ) const

inlineoverridevirtual

Pure virtual operator() overload that must be defined in child class.

Parameters

ref_test_image_path
alg_settings
parallel_params

Returns

Output from belief propagation run or null output if error

Implements RunBpOnStereoSet< T, DISP_VALS, ACCELERATION >.

Definition at line 69 of file RunBpOnStereoSetOptimizedCPU.h.

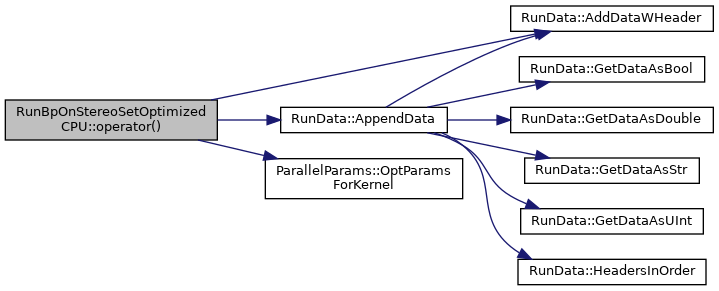

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/beliefprop/BpOptimizeCPU/RunBpOnStereoSetOptimizedCPU.h
