BpSettings.h File Reference
Declares structure to store the belief propagation settings including the number of levels and iterations. More...
#include <vector>#include <string>#include <string_view>#include "RunSettingsParams/InputSignature.h"#include "RunEval/RunData.h"#include "BpConstsEnumsAliases.h"#include "BpRunUtils.h"

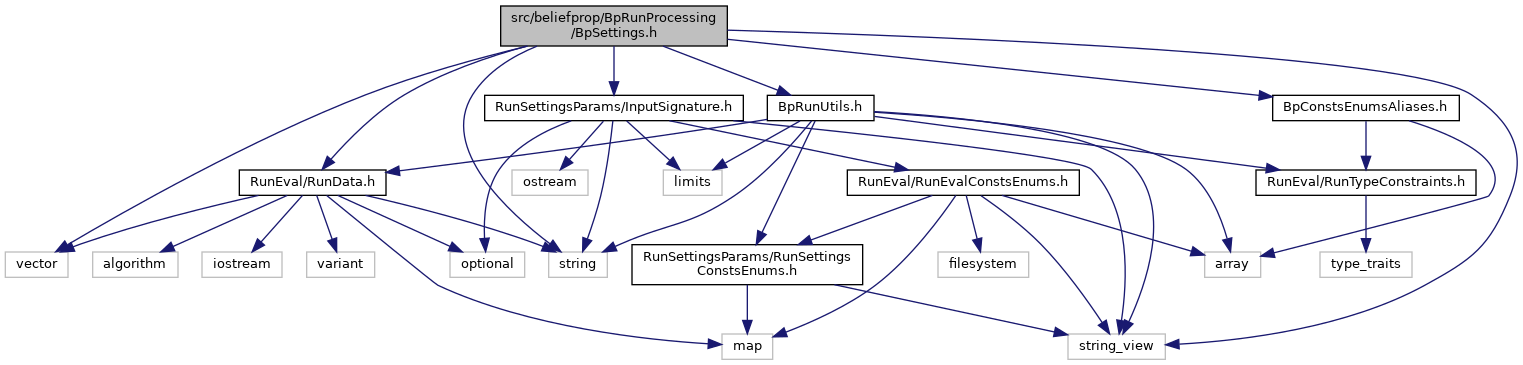

Include dependency graph for BpSettings.h:

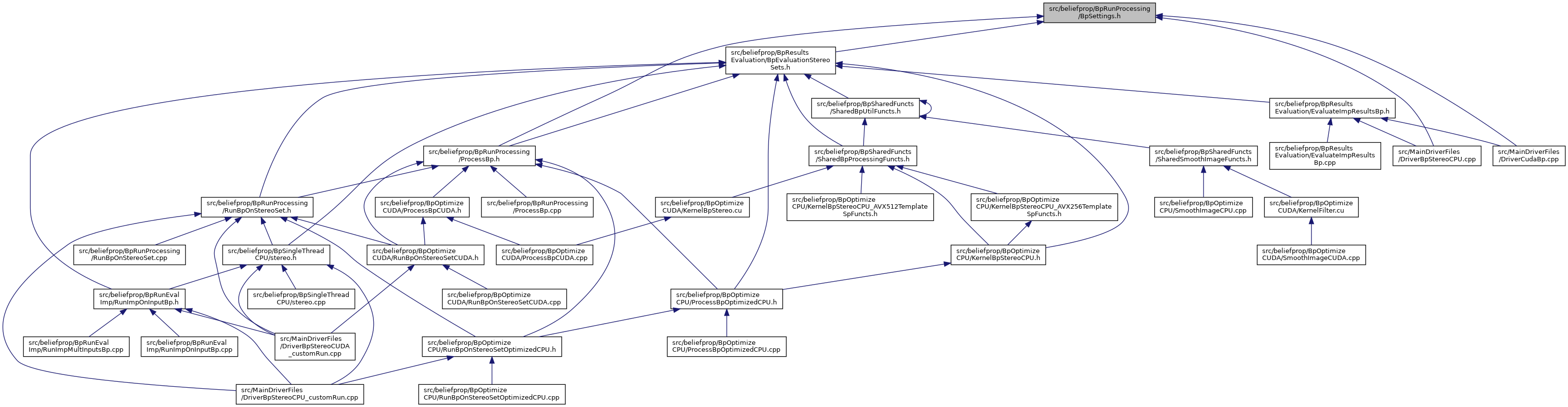

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | beliefprop::BpSettings |
| Structure to store the belief propagation settings including the number of levels and iterations. More... | |
Namespaces | |
| beliefprop | |
| Namespace for enums, constants, structures, and functions specific to belief propagation processing. | |
Variables | |
| template<typename T > | |
| concept | Params_t |
| Parameters type requires AsRunData() function to return the parameters as a RunData object. More... | |
| constexpr std::string_view | beliefprop::kNumDispValsHeader {"Num Possible Disparity Values"} |
| constexpr std::string_view | beliefprop::kNumBpLevelsHeader {"Num BP Levels",} |
| constexpr std::string_view | beliefprop::kNumBpItersHeader {"Num BP Iterations"} |
| constexpr std::string_view | beliefprop::kDiscCostCapHeader {"DISC_K_BP"} |
| constexpr std::string_view | beliefprop::kDataCostCapHeader {"DataKBp"} |
| constexpr std::string_view | beliefprop::kBpSettingsLambdaHeader {"LambdaBp"} |
| constexpr std::string_view | beliefprop::kBpSettingsSigmaHeader {"SigmaBp"} |
| constexpr unsigned int | beliefprop::kDefaultLevelsBp {5} |
| Default values for BP settings. Number of scales/levels in the pyramid to run BP. More... | |
| constexpr unsigned int | beliefprop::kDefaultItersBp {7} |
| Default number of BP iterations at each scale/level. More... | |
| constexpr float | beliefprop::kDefaultSigmaBp {0.0} |
| Default sigma value for smoothing input images. More... | |
| constexpr float | beliefprop::kDefaultLambdaBp {0.1} |
| Default weighing of data cost. More... | |
| constexpr float | beliefprop::kDefaultDataKBp {15.0} |
| Default truncation of data cost. More... | |
Detailed Description
Declares structure to store the belief propagation settings including the number of levels and iterations.
- Copyright
- Copyright (c) 2024
Definition in file BpSettings.h.
Variable Documentation
◆ Params_t
template<typename T >
| concept Params_t |
Initial value:
=
requires(T t) {
{ t.AsRunData() } -> std::same_as<RunData>;
}
Parameters type requires AsRunData() function to return the parameters as a RunData object.
- Template Parameters
-
T
Definition at line 46 of file BpSettings.h.
